High-Velocity Wind Engineering and GAF Timberline HDZ Installations
As the founder of Aquashield Roofing Corporation and a coastal roofing engineer, I have spent my career analyzing why roofs fail in the Mid-Atlantic region. In Franklin, Virginia, we are positioned in a precarious environmental corridor. While we aren't directly on the shoreline, our proximity to the Blackwater River basin means we deal with an oppressive combination of high humidity, Atlantic salt-fog oxidation that eats through inferior metals, and sudden Nor'easters that create localized high-velocity wind vortexes. A standard "code minimum" installation is a recipe for failure here; you need engineering that accounts for uplift and shear forces.

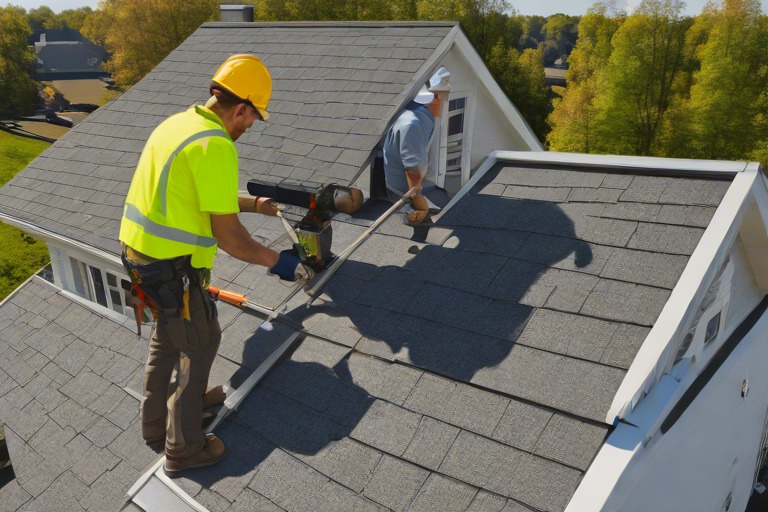

For residential replacements in Franklin—from the historic homes near Downtown Armory Drive to newer developments stretching toward the Southampton County line—we exclusively deploy GAF Timberline HDZ shingles, but we do so with an upgraded fastening protocol that exceeds standard manufacturer guidelines. Most contractors follow a basic nailing pattern; Aquashield implements a strict 6-nail high-wind fastening system on every single shingle. This is not optional. By increasing the fastener density and ensuring precise penetration into the decking, we achieve compliance with ASTM D3161 Class F standards.
This technical specification is critical because it allows us to provide hurricane warranties for winds up to 130 MPH. In a region where wind gusts can suddenly whip through river valleys and create pressure differentials that literally peel shingles off from the bottom up, this increased mechanical attachment transforms your roof into a structural shield rather than just an aesthetic covering.
Technical Specifications for High-Wind Residential Systems: * Material Selection: GAF Timberline HDZ with LayerLock technology to prevent shingle blow-offs during installation and throughout the life of the system. * Fastening Protocol: 6-nail per shingle pattern, ensuring maximum grip against wind uplift forces common in Franklin’s coastal plain geography. * Certification Standard: ASTM D3161 Class F compliance, providing a verified resistance to high-velocity wind pressures up to 130 MPH. * Underlayment Integration: High-performance synthetic underlayments that act as a secondary water barrier against the heavy rainfall and driving rain associated with Nor'easters. * Ventilation Engineering: Precision calculation of intake (soffit) and exhaust (ridge) vents to prevent attic heat buildup, which can prematurely age shingles from the inside out through "cooking."
The Non-Negotiable Standard: Full Tear-Offs and Decking Integrity
In my years as an engineer, I have seen more roof failures caused by poor preparation than by poor materials. There is a common, dangerous practice in some parts of Virginia known as "nailing over"—installing new shingles directly on top of old ones to save time and disposal costs. At Aquashield Roofing Corporation, we maintain a strict, non-negotiable rule: 100% complete tear-offs down to the clean wood decking.
Nailing over an existing roof is professional negligence in a climate like Franklin's. Trapping two layers of shingles creates a moisture sandwich that prevents the home from breathing and hides critical structural rot. When we strip a roof, we aren't just removing debris; we are performing a forensic audit of your home’s skeletal structure. We inspect every square inch of the decking for deflection, water staining, and fungal decay.
We specifically look for compromised sheathing that has been weakened by years of humidity from the Blackwater River basin. If we find rotted or delaminated boards, they are immediately removed and replaced with high-grade CDX plywood. We never nail into soft wood; a fastener is only as strong as the substrate it grips. By ensuring every shingle is anchored into structural-grade CDX plywood, we guarantee that our 6-nail fastening system actually works. If you nail a premium GAF shingle into rotted decking, the rest of the roof stays put while the fasteners pull out with the wood—rendering your warranty useless.
Our Decking Integrity Protocol: * Zero Overlay Policy: Complete removal of all existing layers to eliminate trapped moisture and hidden rot. * Substrate Audit: Comprehensive inspection for "soft spots" or sagging, ensuring a perfectly planar surface for shingle application. * CDX Plywood Replacement: Use of structural-grade CDX plywood for any compromised decking areas to ensure maximum fastener withdrawal resistance. * Drip Edge Installation: New heavy-gauge aluminum drip edges installed on all eaves and rakes to direct water away from the fascia, preventing rot at the roof's edge. * Debris Management: Industrial magnetic sweeping of the perimeter (including driveways near Armory Drive) to ensure no nails remain in your landscape or driveway after a full tear-off.
Commercial TPO Engineering for Low-Slope and Flat Roof Systems
Commercial facilities, sunrooms, and porches throughout Franklin require an entirely different engineering approach than pitched residential roofs. For these low-slope applications—especially those exposed to the intense UV radiation and salt-fog oxidation of our region—we utilize 60-mil single-ply TPO (Thermoplastic Polyolefin) membranes.
TPO is superior for commercial assets near the Southampton County line because it reflects a significant portion of solar heat, reducing cooling costs during Virginia's brutal summers. However, the material itself is only as good as its seams. Many contractors use adhesives or tapes to join sheets, but these are failure points that degrade over time under thermal expansion and contraction.
Aquashield employs robotic heat-welding technology for all TPO installations. We utilize a precision welder set to exactly 1,000°F to fuse the overlapping membranes together. This process creates a monolithic bond; it doesn't just "stick" the seams—it welds them into a single, continuous sheet of plastic. When performed correctly at this temperature, the seam becomes stronger than the membrane itself. Whether we are roofing a commercial warehouse near Downtown Armory Drive or a residential sunroom overlooking the Blackwater River basin, our TPO systems provide an impenetrable barrier against ponding water and high-velocity wind shear.
Commercial Flat Roof Technical Specs: * Membrane Grade: 60-mil single-ply TPO for maximum puncture resistance and long-term durability compared to thinner 45-mil alternatives. * Seam Fusion: Robotic heat-welding at 1,000°F, eliminating the reliance on chemical adhesives that break down under UV exposure. * Thermal Management: High-reflectivity white membranes designed to mitigate "heat island" effects and lower HVAC overhead for commercial facilities. * Edge Detail: Reinforced perimeter flashing and termination bars to prevent wind uplift at the roof edges during high-velocity storm events. * Drainage Optimization: Precision slope correction using tapered insulation if necessary, ensuring water flows efficiently toward scuppers or internal drains without ponding.
Surgical Emergency Repairs and Advanced Waterproofing Solutions
Emergency leaks are not solved with a tube of caulk; they are solved with metallurgy and engineering. In Franklin, the combination of heavy rainfall and atmospheric salt-fog creates an environment where standard flashing fails prematurely. When Aquashield responds to 24/7 emergency calls—whether in the heart of town or out toward the Blackwater River basin—we apply surgical precision to identify the point of failure and implement a permanent fix.
One of our most critical standards is the elimination of rubberized pipe boots, which crack under UV stress within five years. We replace these with lifetime solid lead plumbing pipe boot collars. Lead provides an unmatched seal that conforms perfectly to the vent pipe and resists oxidation far better than synthetic alternatives.
Furthermore, we address the two most common failure points in Virginia roofing: chimneys and dead valleys. For chimneys, we don't just slap on sealant; we perform full chimney reglet step flashing rebuilds. This involves cutting a groove (the reglet) into the masonry to tuck metal flashing directly behind the brick, ensuring water cannot migrate between the house and the chimney stack. In areas where two roof planes meet at an irregular angle—creating a "dead valley"—we install soldered copper dead valley liners. Copper is the gold standard for coastal engineering; when properly soldered, it creates a seamless, waterproof trough that will outlast the rest of the building's components.
Emergency Repair & Waterproofing Standards: * Plumbing Vent Seals: Installation of solid lead pipe boot collars to replace failing rubber boots and provide a lifetime watertight seal. * Chimney Integration: Full reglet step flashing rebuilds, ensuring mechanical integration with masonry rather than relying on surface-level caulking. * Dead Valley Solutions: Custom-fabricated copper liners, precision-soldered at the joints to prevent leaks in high-volume water collection areas. * Metal Oxidation Protection: Use of corrosion-resistant materials specifically chosen to withstand Atlantic salt-fog oxidation and humidity. * Rapid Response Protocol: 24/7 emergency deployment for Franklin residents facing active intrusions during Nor'easters or severe storm cells.
